Smart Glass Office Partitions
Smart Glass Office Partitions

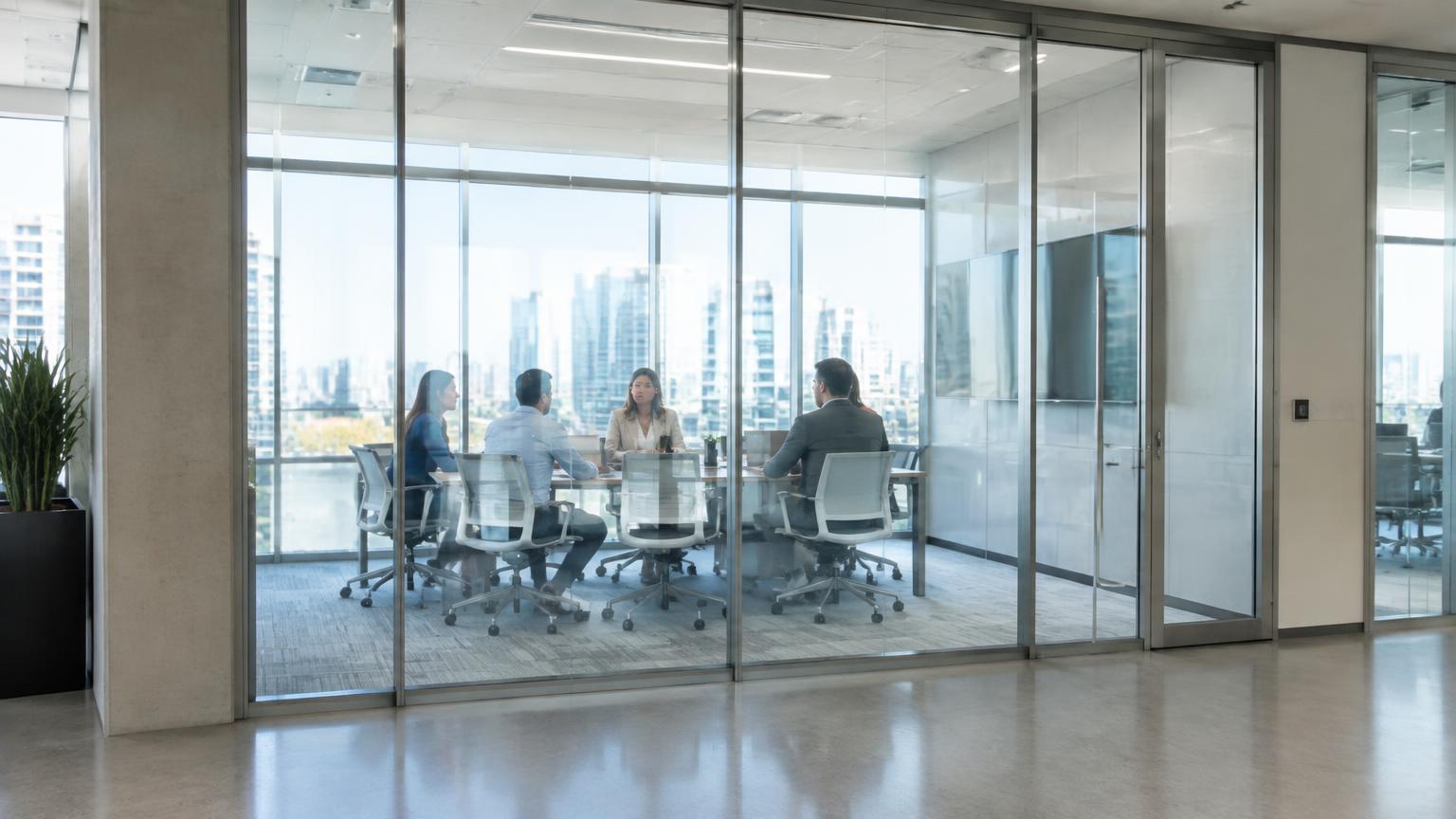

Glass partition walls that switch from clear to private, so meeting rooms and executive offices get privacy without giving up daylight or the open-plan look.
Overview
Privacy that does not close the office in
Glass partitions make a workplace feel open and bring daylight deep into the floor plate. The moment a confidential conversation starts, switchable glass gives the room the walls it needs.
Confidential when it matters
Board meetings, HR conversations, interviews and client calls get instant visual privacy.
02No blinds to manage
Blinds inside glass partitions get left closed, break, and collect dust. There is nothing hanging on switchable glass.
03Reverse option for offices
Smart Glass Technologies Reverse (PNLC) is clear when unpowered with lower haze, which suits offices that are clear most of the day.
How it is built
How it is made
- Laminated switchable glass panels for framed and frameless partition systems.
- Switchable film applied to suitable existing partition glass as a retrofit.
- Maximum panel size 70 in by 144 in, and 70 in by 126 in at 1/2 in.
- Zoned control so each room or bank of panels switches on its own.
- Control by wall switch, app, schedule, or building and room-booking systems.
- Under 0.5 W per sq ft, drawn only while the panel is powered.
Where it works
Typical applications
Technical data
At a glance
These figures come from the Smart Glass Technologies product manuals and our published product pages.
- Laminated safety glass: low iron, heat strengthened or tempered.
- Thicknesses of 3/8 in, 1/2 in and 9/16 in, with others on request; about 5 lbs per sq ft.
- Maximum panel size 70 in by 144 in, and 70 in by 126 in at 1/2 in thickness.
- Low voltage operation at 48-55 VAC through a supplied transformer.
- Power consumption under 0.5 W per sq ft, only while the glass is powered.
- Over 98% UV blocking, and 100% when the glass is off.
- Sound reduction of approximately STC 40 from the laminated interlayer.
- Rated for 2 million switching cycles and designed to last a minimum of 15 years.
Common questions
Questions about office partitions
Can we retrofit our existing partitions?
Often yes. our smart film is applied to suitable existing partition glass without replacing the system.
Which technology suits an office?
Smart Glass Technologies Reverse (PNLC) is clear when unpowered with 91% visible light and 2.4% haze, which suits offices that stay clear most of the day.
Can it be fitted to glass I already have?
Yes, on suitable existing glass we apply our smart film. For new work or replacement glazing we supply complete laminated smart glass panels.
What happens when the power goes out?
Original PDLC is private when the power is off and clear when it is on. Reverse PNLC is the other way around and stays clear in a power failure.
How is it switched?
By wall switch, remote, mobile app, schedule, or integration with a building or access control system.
How much does it cost?
Our published prices start at $70 per sq ft for our smart film and $145 per sq ft for laminated smart glass. See the full breakdown on our smart glass cost page.
How long does it take?
Typical production is 2-4 weeks, with delivery in 5-10 days depending on size and scope.
Do you install it?
Yes. Our certified installers cover cities across the USA and Canada. Check our service areas.
Get a quote for your office partitions
Send your floor plan and the rooms you want switchable. We will lay out the panels and quote the job.
