Clear by default. Privacy on command.
Smart Glass Reverse (PNLC)
Reverse smart glass — complete privacy control at your fingertips. Easy to install and connect.
Request pricingAbout the product
What is Smart Glass Reverse ?
PNLC Smart Glass is also known as Adverse PDLC Glass. Unlike regular PDLC smart glass, PNLC glass operates in reverse: it turns opaque when powered on and clear when powered off. Its versatile nature makes it ideal for both residential and commercial settings, providing privacy and dynamic control over the transparency of glass surfaces.
Control options
Privacy, at your command.
Smartphone. Remote. Wall switch. Voice.
One space. Your choice.
Meeting room
Glass privacy
Smartphone
Your space, at a touch.
Remote
Control within reach.
Wall switch
Simple. Familiar. Instant.
Voice & Wi-Fi
Alexa or Google Home.
TECHNICAL SPECIFICATIONS
| ELECTRICAL | TECHNICAL | OPTICAL |
|---|---|---|
| Working Voltage(ON)60-80VAC Current Frequency: 50/60Hz | Glass TypeLow Iron ( Heat Treated or Fully Tempered ) | Visible Light Transmission (OFF)91% |
| Power Consumption < 0.5W/SF | Glass OptionsCompatible with selected colored interlayers and tinted glass configurations. | Parallel Light Transmission(ON)7% Parallel Light Transmission(OFF): 80% |
| Operating temperature-10°C ~ 60°C | Max Size 57 inch x 143 inch | Haze (ON)95% Haze (OFF): 2.4% |
| Response Time (OFF-ON)< 200ms | Thickness 3/8 inch Thickness 1/2 inch Thickness 9/16 inch Weight ~5 lbs/sqft | UV Block99% /365nm-380nm |
| Response Time (ON-OFF)< 10ms | ShapesCustom shapes and curved configurations, including holes, notches, and cutouts | IR Block (OFF)20% IR Block (ON): 80% |
| Switch Speed ON < 200 milliseconds | Sound Transmission Class (STC) ~ 37 | SHGC (OFF)0.74 SHGC (ON): 0.31 |
| Switch Speed OFF < 10 milliseconds | Switching Life>2 Million Cycles | Light Transmission View Angle (ON)170° |
How it works
A clear view. Until you choose privacy.
Reverse PNLC technology keeps the viewing state clear without power. Apply power when privacy is needed, then switch it off to return to a transparent view.
Inside PNLC Technology

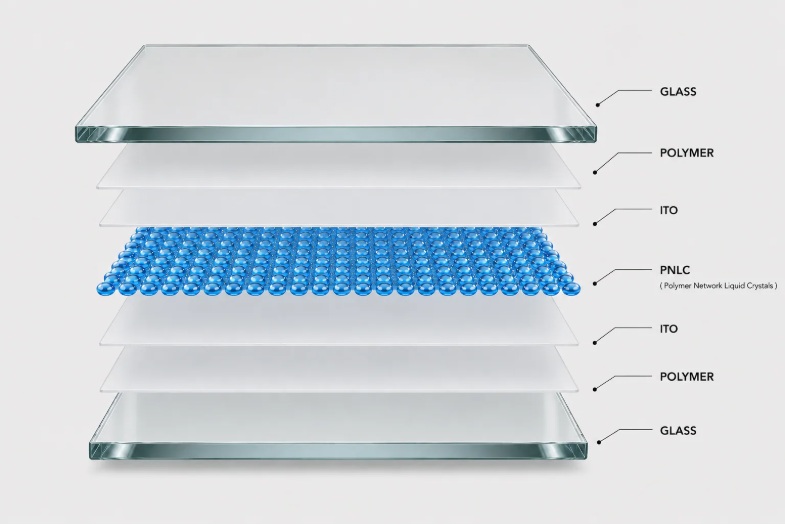

PNLC glass contains microscopic liquid crystal droplets embedded within a polymer matrix. Conductive ITO layers control the switching layer, enclosed between polymer layers and glass.
An electric field changes how the liquid crystals transmit or scatter light, switching the glass between transparent and opaque states.
A clear view without power.
Reverse PNLC glass stays transparent without electrical power, keeping the space visually connected.
Privacy when switched on.
Apply power to scatter light for a frosted privacy state. Switch it off to restore the clear view.
An open, clear view.
A transparent viewing state connects the spaces.
Privacy when you need it.
A frosted appearance separates the space visually.
Compare
Glass Reverse (PNLC) vs. Glass Original (PDLC)
Glass Reverse — PNLC
Clear when the power is off, private when the power is on.
- Power offClear — 91% visible light, 2.4% haze
- Power onPrivate — 95% haze
- If power failsThe glass stays clear
- Best forOffice space — less haze, slightly less private
- Energy usePowered only while you want privacy
Glass Original — PDLC
Clear when the power is on, private when the power is off.
- Power onClear — 88–91% visible light, 2.4% haze
- Power offPrivate — 99% haze
- If power failsThe glass goes private
- Best forResidential, exterior, maximum privacy
- Energy usePowered while you want the glass clear
Applications
Privacy for every space.
Doors
On-demand privacy for entry, office and sliding doors.
Windows
Keep the daylight. Choose when to open up the view.
Bathroom
A clean alternative to curtains and permanently frosted glass.
Wall Dividers
Switch between open collaboration and private spaces.
Custom Frames
Privacy film tailored to distinctive glass shapes and frames.
Turnkey installation · Nationwide
Smart glass.
Professionally installed.
We don't just supply smart glass. Smart Glass Tech US offers professional installation across the United States, with a team that takes your project from first measurement to final switch-on.
Our team coordinates the glass installation, connects power and controls, and tests the system with you before hand-over.
Plan your installationFAQ
Reverse Smart Glass Questions
What makes Reverse Glass different?
Reverse Glass uses PNLC technology, so it is clear when power is off and turns opaque when power is on. Standard PDLC glass works in the opposite way.
Is Reverse Glass a good choice for offices?
Yes. It is ideal for meeting rooms and interior partitions where glass normally stays clear and privacy is needed only at selected times.
Does it provide privacy during a power outage?
No. Reverse Glass becomes clear when power is off. For fail-private applications, standard PDLC glass is usually the better choice.
How quickly does it switch?
The glass turns private in under 200 milliseconds and returns to clear in under 10 milliseconds.
Is it energy efficient?
Yes. It runs on 60–80 VAC low voltage and consumes less than 0.5 watts per square foot while powered — and it needs no power at all to stay clear.
Can it be used in doors and partitions?
Yes. The laminated construction makes it suitable for interior doors, office partitions, conference rooms and other architectural glazing applications.
What colors are available?
Reverse Glass is available in white only. Grey and tinted options are offered on standard PDLC glass.
Where can I find installation information?
The technical manual above includes handling, electrical and installation guidance. A qualified glazing professional should complete installation.
