Smart Glass CLC Blackout
PriWatt CLC Blackout

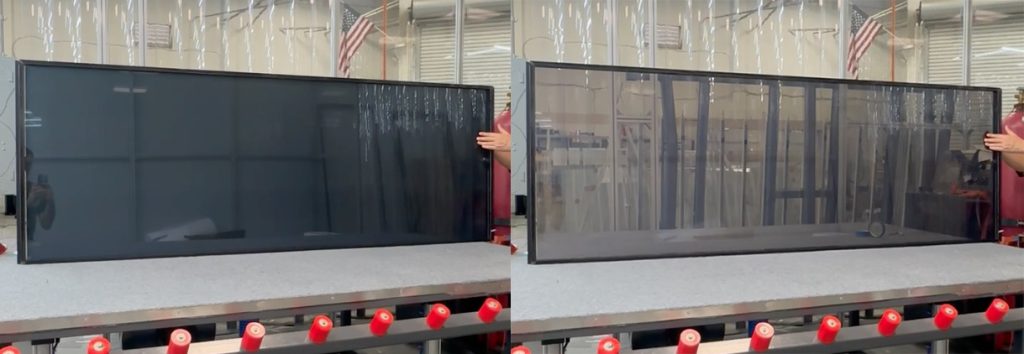

From Clear Glass to Blackout at the Flick of a Switch

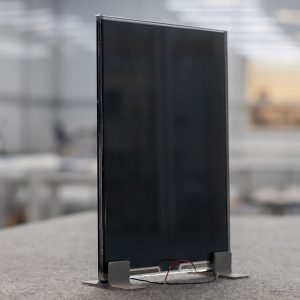

PriWatt CLC (Colorant Liquid Crystal) is a new type of Smart Glass.
In the off-state - it appears as a neutral gray-black, providing functions such as light blocking, shading, and privacy protection.
In the on-state - it becomes transparent with clear visibility and a wide viewing angle.
Ideal for outdoor use, these units are perfect for windows, doors, and facades, enhancing design aesthetics while ensuring energy efficiency and effective environmental control.
Natural
Light
Comfort
Glare Reduction
Privacy
On
Demand
Key Features of PriWatt CLC
- Blackout Effect: Neutral gray-black appearance when powered off, providing total privacy and shading.
- Crystal Clear Transparency: Switches to transparent mode when powered on, with low haze (<3%) and a wide 160° viewing angle.
- High Contrast Ratio: Greater than 6x contrast ratio, ensuring sharp transitions.
- Wide Temperature Range: Functions reliably from -22°F to 194°F (-30°C to 90°C), suitable for extreme environments.
- UV & Infrared Blocking: Blocks over 99% UV rays and 80% infrared, enhancing comfort and protecting interiors.
- Energy Efficient: Consumes only <0.84W/ft² (<9W/m²) in ON state and <1.39W/ft² (<15W/m²) with the controller.
- Durability: Engineered for over 2 million switch cycles, ensuring longevity in demanding conditions.
Technology
Technical Specifications
| Parameter | ON State | OFF State |
|---|---|---|
| Total Light Transmission | 38±1.5% | 6±0.5% |
| Optical Contrast | >6 times | – |
| Haze | <3% | >95% |
| Viewing Angle | 160° | 160° |
| Operating Voltage | 48-60V AC | – |
| Power Consumption | <9W/m² | <15W/m² (Controller) |
| Response Time (ON/OFF) | <5ms / <150ms | – |
| Operating Temperature | -30°C to 90°C | – |
| UV Blocking | >99% | – |
| Infrared Blocking | >80% | – |
| Switch Durability | >2,000,000 times | – |
| Thickness | 0.39±0.01mm | – |
Durability Tests
- UV Resistance: 100 hours under 300nm light with no significant performance drop.
- Boiling Water Resistance: 2 hours in 100°C hot water, maintaining optical clarity.
- Humidity Resistance: 336 hours in 49-54°C water environment.
- High & Low Temperature Resistance: Proven resilience after 1000 hours at -30°C and 2000 hours at 90°C.
- Thermal Shock Test: 1000 cycles between -30°C and 80°C.
- Long-Term ON/OFF Cycling: Tested over 30,000 cycles with minimal performance degradation.
CLC Film
Our self-adhesive PriWatt™ CLC Film is the perfect retrofit solution. It can be easily applied to existing glass without the need for replacement or major renovations.
Ideal For:
- Offices & Conference Rooms
- Retail Storefronts
- Residential Windows
- Interior Partitions
Key Benefits:
- Quick & clean installation
- Cost-effective privacy upgrade
- Maintains original glass aesthetics
- Available in custom sizes
CLC Laminated Glass
For new construction or premium projects, PriWatt™ CLC Laminated Glass integrates the CLC technology between two layers of glass, ensuring durability, safety, and a seamless appearance.
Ideal For:
- High-end residential & commercial buildings
- Curtain walls & facades
- Public spaces, schools, gyms
Key Benefits:
- High impact resistance & safety
- Superior noise insulation
- Long-term performance with over 2 million switch cycles
- Custom thickness and dimensions available
CLC IGU Windows
For maximum energy efficiency, we offer PriWatt™ CLC IGUs, combining the smart blackout feature with thermal insulation properties.
Ideal For:
- Exterior windows & facades
- Climate-controlled buildings
- Green buildings & LEED projects
Key Benefits:
- Excellent heat & sound insulation
- Reduced HVAC costs
- UV & infrared protection
- Enhanced occupant comfort
Manufactured in the USA our locally production ensure high quality, efficient logistics, and strong customer relations.
